electric heating film heating mat for underground heating systems

electric heating film heating mat for underground heating systems

FOB Price:

US 13-120 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

15000 Piece/Pieces per Month

Port:

SHANGHAI FOR electric heating film heating mat for underground heating systems

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,PAYPEL

Brand:

Senphus

Products Model:

SHHM

Products Details
Company Profile

Quick Details

Brand Name: Senphus

Model Number: SHHM

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Neutral box ( clean, no quirements) 2.Colorful box (with our logo and brand) 3.OEM (with customers' requirements)
Delivery Detail: 15 days normally change with the quantity

Specifications

Product Description

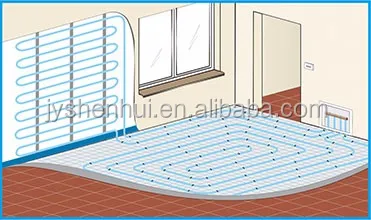

electric heating film heating mat for underground heating systems

Combines the highest comfort level with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient (saving 30%-40% compared with traditional electric underfloor heating mat). and the desired temperature can be achieved within 20 - 30 Minutes

Specifications of underfloor heating mat

1.Twin conductor underfloor heating mat

2.suitable for various floor decorative materials, like concrete floor, wood flooring or the old floor

3.Easy to install and take the installation instruction for a reference

4.Directly laid on the orginal floor with no treatment on the orginal floor

Datas of senphus heating mat (take 160w for example, the power is according to your requirements,The color of the heating wire and the mat are optional.We can do the space 5cm, 7cm,9cm and 11cm.We offer all kinds of tapes choose, for example, double sticky tapes, gray tapes,printed tapes etc)

Model	Voltage	Square meters	Power(W)	Ohm
SHHM-160-0.5M2	230	0.5	80	661.3
SHHM-160-1.0M2	230	1.0	160	300.6
SHHM-160-1.5M2	230	1.5	240	220.4
SHHM-160-2.0M2	230	2.0	320	165.3
SHHM-160-2.5M2	230	2.5	400	132.3
SHHM-160-3.0M2	230	3.0	480	110.2
SHHM-160-3.5M2	230	3.5	560	94.5
SHHM-160-4.0M2	230	4.0	640	82.7
SHHM-160-5.0M2	230	5.0	800	66.1
SHHM-160-6.0M2	230	6.0	960	55.1
SHHM-160-7.0M2	230	7.0	1120	47.2
SHHM-160-8.0M2	230	8.0	1280	41.3
SHHM-160-9.0M2	230	9.0	1440	36.7
SHHM-160-10.0M2	230	10.0	1600	33.1
SHHM-160-11M2	230	11.0	1760	30.1
SHHM-160-12M2	230	12.0	1920	27.6
SHHM-160-15M2	230	15.0	2400	22.0

Precautions

ATTN	Do right things to protect the heating mat
1	do not damage heating mat
2	well installation can guarantee the effiency
3	after the installation, take a full test to make sure the system works well
4	heating insulation should be dry and the joints cable should be sealed
5	the junction box should be sealed to prevent water leak
6	protective sleeve must not be damaged during installation, and the core wire can not bare

Jiangyin Senphus Electrical Material Co.,Ltd is the only one floor heating cable in China which has his own alloy resistance material company.

Our main products:

1, underfloor heating system: floor heating cable, floor heating mats

2, anti-freeze heating cables: water pipe heating cable, roof& gutter de-icing cable

3, Heating wires: PVC heating wire, Silicone rubber heating wire, FEP heating wire, electric blanket heating wire, car seat heating wires, etc.

4, silicone rubber heater: UL silicone rubber heater, drum heaters

5, Alloy materials:
A,Nichrome, NiCr8020, NiCr6015, NiCr7030, NiCr3520, NiCr3020, NiCr2025, etc.
NiCr 80 Also called: Chromel A, Nikrothal 80, N8, Nichrome V, Tophet A, Resistohm 80, Cronix 80, Alloy A, MWS-650, Stablohm 650
NiCr 60 Also called: Chromel C, Nikrothal 60, N6, Tophet C, Resistohm 60, Cronifer II, Nichrome Alloy C, MWS-675, Stablohm 675

B,Copper Nickel Alloys (CuNi Alloys):CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40, CuNi44 (constantan)

C.Pure nickel wire: N6, N8

D.PTC thermistor alloy wire: P-4500, P-4000, P-3800, P-3500, P-3000, P-2500

E.Stranded wire: nichrome alloy, nickel strand wire and other alloy material.

F.Thermocouple wire: Type K, N, E, J, T, S. Thermocouple cables

G.Thermocouple compensation alloy : KPX, KNX, EPX, ENX, TNX, NPX, NNX, JPX,JNX,etc
